CNC engraving milling machine ymc-7060

2020-10-23 11:43:01
second

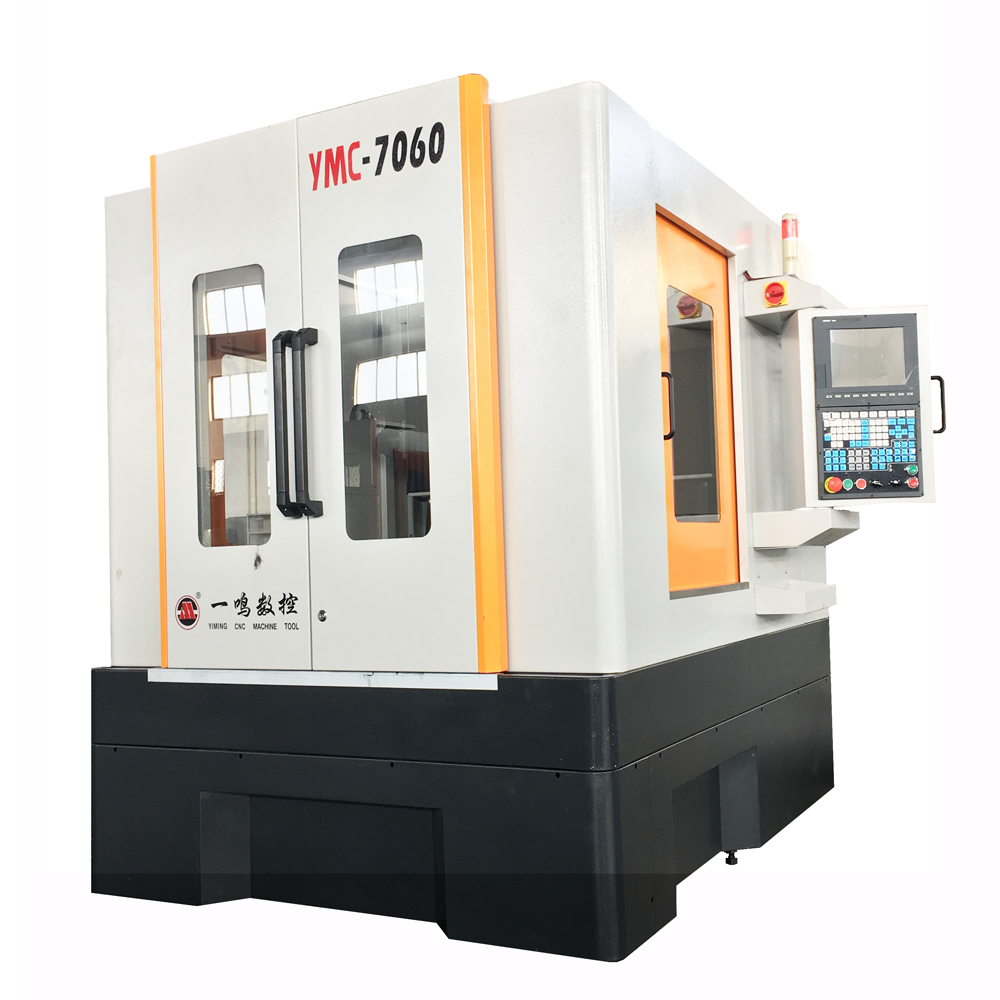

CNC engraving  milling machine ymc-7060
Detailed introduction:

机器规格:YMC-7060系列

          项次

项  目

技术参数

1

X/Y/Z行程

600/700/270mm

2

工作台最 大负重

300Kg

3

龙门宽度

740mm

4

          龙门高度(主轴鼻端到台面)

390mm(大约值)

5

最 大走刀速度(G01)

6000mm/Min

6

最 大移动速度(G00)

7500mm/Min

7

主轴电机额定功率

5.5KW

8

主轴最 高转速

24000RPM

9

主轴锥孔规格

          ER32(选配BT30)

10

 整机毛量

2.5T



Yiming automatic engraving milling machine can be used as a template for subsequent processing of similar parts, which only saves time, but also ensures the quality. As the template itself is also a process of continuous modification improvement, small high-speed milling can achieve progressive standardization serialization effect. Therefore, numerical control technology has a good inheritance.

Due to the high degree of automation of NC machining, safety quality are the key. NC machining process must be verified before it can be used to guide production. In general machining, the process documents can be directly sent to the production line to guide the production, which generally does need the above complex process.


数控雕铣机 YMC-7060

数控雕铣机 YMC-7060

YMC-7060
