CNC engraving milling machine ymc-6050

2020-10-23 11:43:20
second

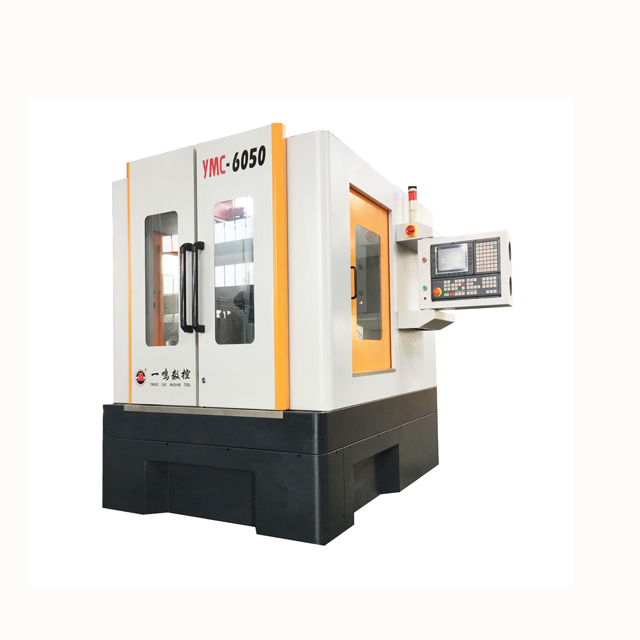

CNC engraving  milling machine ymc-6050
Detailed introduction:

机器规格:YMC-6050系列

            项次

项  目

技术参数

1

X/Y/Z行程

500/600/230mm

2

工作台最 大负重

300Kg

3

龙门宽度

660mm

4

          龙门高度(主轴鼻端到台面)

390mm(大约值)

5

最 大走刀速度(G01)

6000mm/Min

6

最 大移动速度(G00)

7500mm/Min

7

主轴电机额定功率

4.0KW

8

主轴最 高转速

24000RPM

9

主轴锥孔规格

          ER25(选配BT30)

10

 整机毛量

2.5T



In the process of NC machining, the machinability, positioning datum clamping mode of machined parts should be considered, the cutting tools, manufacturing process routes, cutting methods parameters should be selected, which can be simplified in the conventional machining process. Therefore, the NC machining technology is much more complex than the ordinary processing technology, there are many factors that affect the NC machining. Therefore, it is necessary to analyze the whole process of NC machining, reasonably arrange it, then make comprehensive improvement. For the same machining task of Yiming CNC engraving milling machine, there are several numerical control technology schemes. You can choose the processing site as the main line processing technology, you can choose the processing tool as the main line processing technology. The diversity of NC machining technology is a characteristic of NC machining technology, which is quite different traditional machining technology.

Due to the high degree of automation of NC machining, the adaptability of NC machining is poor. Moreover, there are many factors that affect the NC machining of small graphite engraving milling machine, which are relatively complex, need to consider the whole process of NC machining. There must be a good reason for NC machining process design, that is, the design process of NC machining must be careful, no error is good.


数控雕铣机 YMC-6050

数控雕铣机 YMC-6050


YMC-6050
