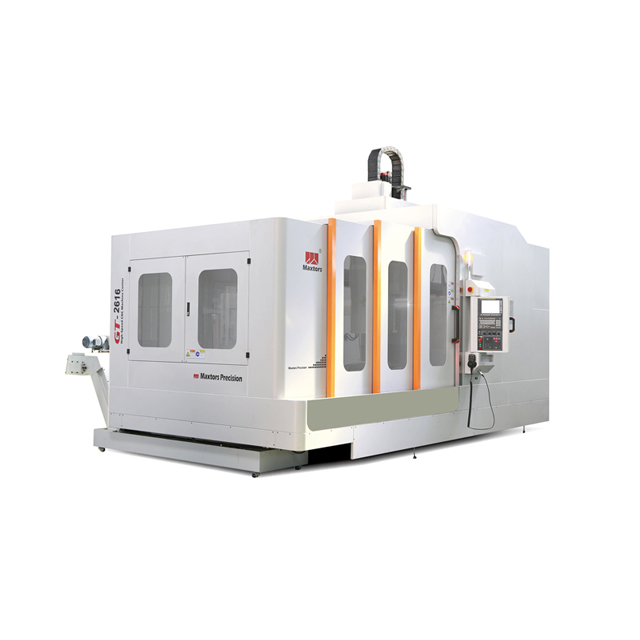

GT series medium high speed milling gt-2616

2020-10-23 13:09:02
second
GT series medium high speed milling gt-2616
Detailed introduction:


GT-2616主要规格及技术参数


          规格说明/DESCRIPITION

          单位/UNIT

GT-2616

          ●

行程/TRAVEL




XYZ轴导轨型式


          高刚性滚柱&滚珠线轨(Z轴四线轨结构)


X轴行程(工作台)

mm

2600


Y轴行程(横梁)

mm

1580


Z轴行程(上下)

mm

800


主轴鼻端至工作台面

mm

250-1050(大约值)


双柱间距离

mm

1600(大约值)

工作台/TABLE




工作台尺寸(长)

mm

2600


(宽)

mm

1480


最大载重

kg

8000

主轴/SPINDLE




主轴转速/RPM

rpm

无级变速15000rpm


主轴内孔锥度/TYPE


HSK-A63

进给/FEED RATE




G00 快速进给(X轴)

mm/min

15000


G00 快速进给(Y轴)

mm/min

15000


G00 快速进给(Z轴)

mm/min

12000


G01 切削进给

mm/min

1 – 8000

其他




机器重量

kg (约)

23500


Rolling screw assembly:

1. Bearing preloading of Yiming graphite engraving milling machine: the bearing can be used as a pair of preloading bearings self-matching, with preload of about 0.020.05.

2. The wire assembly shall ensure that the bearing bracket motor bracket are equal in height the height at both ends shall be less than 0.01 mm 20 mm the shaft end.

3. In the two-dimensional (horizontal vertical) direction with the line track, the wire rod should also be strictly parallel, the overall non parallelism should be less than 0.01/300.

4. The crossbeam, the connecting plate beam, the connecting plate the z-axis slide plate, the x-direction Z-direction guide rails are perpendicular to each other in the assembly.

5. The manufacturer of CNC engraving milling machine should apply uniform force one after another to ensure the four phases are equal. After each component is assembled, the torque shall be weighed - the full range torque shall be less than 0.6 kg-m.

6. The pre-school factory should ensure the pre installation inspection between the wire the nut between the wire the slider.


GT 系列中高速铣 GT-2616

GT 系列中高速铣 GT-2616

GT-2616
