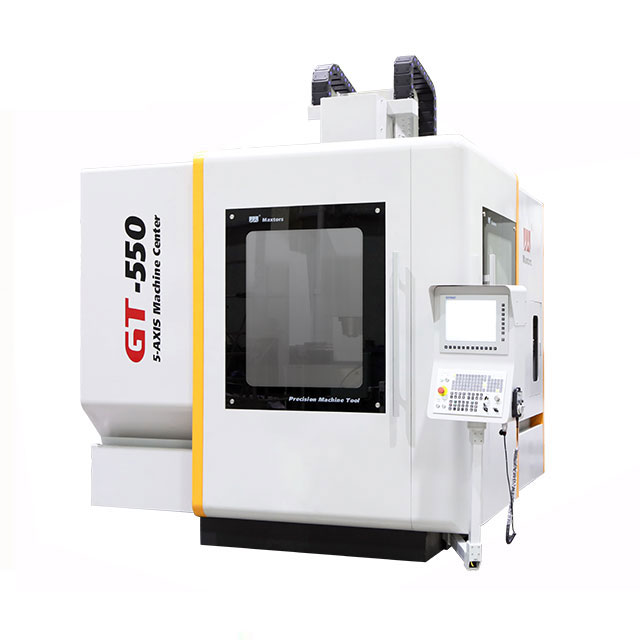

Cradle five axis machining center gt-550

2020-10-23 11:05:08

second

Cradle five axis machining center gt-550

Detailed introduction:

GT-550主要规格及技术参数

项次	项目	技术参数
1	X/Y/Z轴行程	800/520/465
2	X/Y/Z快进给数度	3000/3000/2000
3	A(B)轴行程	B轴+30~-100° C轴0~360°
4	C轴回转台尺寸	550
5	工作台承重	300kg（水平） 200kg（0~-90倾斜）
6	定位及重复定位精度	定位0.008重复0.005
7	A（B）C轴回转精度	B轴定位50”重复定位8”
8	C轴回转精度	C轴定位15”重复定位6”
9	主轴转速	18000
10	主轴内孔锥度	HSKA63
11	主轴功率	11Kw
12	主轴扭矩	33Nm
13	A(B)C轴转速	16.6rmp
14	是否直驱	否
15	系统	铼钠克
16	程序段预读	8000行
17	Rtcp功能	有
18	机床结构	滑鞍式五轴加工中心
19	重量	10t

Composition of Yiming CNC engraving milling machine system

The engraving technicality of electronic computer numerical control machine tool (commonly known as CNC machine tool engraving technicality) is the combination of traditional engraving technology contemporary CNC machine tool technology. It inherits the characteristics of traditional carving, which is delicate, light easy to operate. The small gantry mill uses the automatic control of traditional CNC lathe processing. CNC engraving machine is a kind of CNC lathe processing machine which integrates CAD technology, CAM technology, NC technology precision manufacturing technology. Compared with traditional NC machining, CNC engraving has the following characteristics:

The processing object of CNC engraving has the characteristics of small size, complex shape fine product requirements

CNC engraving is characterized by the use of small cutting tools;

CNC engraving products have high dimensional accuracy good consistency.

摇篮五轴加工中心 GT-550
