CNC gantry milling ymc-2616

2020-10-23 11:05:57
second

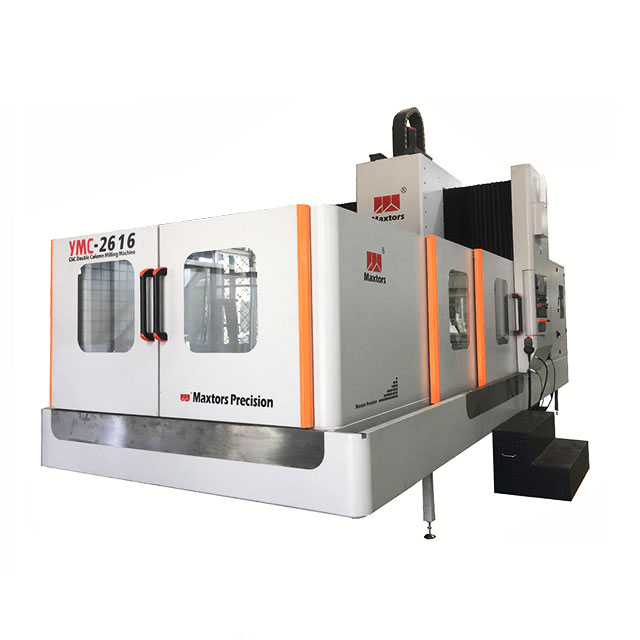

CNC gantry milling ymc-2616
Detailed introduction:


YMC-2616主要规格及技术参数


          规格说明


          单位

          YMC-2616

          ●

行程





XYZ轴导轨型式



三轴高刚性滚柱线轨


X轴行程(横梁)


mm

1600


Y轴行程(工作台)


mm

2600


Z轴行程(上下)


mm

800


主轴鼻端至工作台面

          ※

mm

150-950(大约值)


双柱间距离


Mm

1620(大约值)

工作台





工作台尺寸(长)


mm

2600


(宽)

mm

1480


最 大载重


kg

8000

主轴





主轴转速

rpm

10000


主轴内孔锥度



          BT40(外径150mm)

进给





          G00 快速进给(X轴)


mm/min

15000


G00 快速进给(Y轴)


mm/min

15000


G00 快速进给(Z轴)


mm/min

7500


G01 切削进给


mm/min

1 – 7500

其他





机器重量


kg (约)

20000




Equipment lubrication, spot check shift records

Fill oil before operation according to equipment lubrication diagram ( lubrication card).

Check the large engraving machine carefully every day, fill in the truth, complete, without exception, make records.

Class 2 ( class 3) equipment used shall have an equipment class record book.

The operator must record the operation, problems troubleshooting of the equipment in detail in the small mold high-speed milling equipment record book.

After the operator arrives, the equipment is moved to the file exchange record book, the parts lubrication of the equipment are carefully checked to confirm that the equipment is normal, the workpiece meets the requirements, the shift is clear can work.

If you find any problems during the shift, you should report to the operation director equipment staff in time. If the handover is clear, the replaced equipment should be replaced.


数控龙门铣 YMC-2616

YMC-2616
