CNC gantry milling ymc-2215

2020-10-23 11:06:20
second

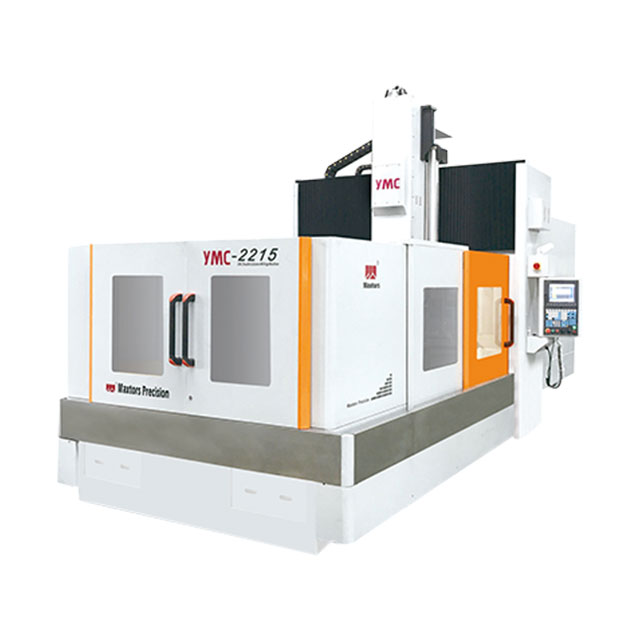

CNC gantry milling ymc-2215
Detailed introduction:


机器规格:YMC-2215系列


规格说明


单位

YMC-2215

          ●

行程





XYZ轴导轨型式



          高刚性滚柱/滚珠线轨&Z轴四轨设计


          X轴行程(工作台)


          mm

2200


Y轴行程(横梁)


mm

1500


Z轴行程(上下)


mm

800


主轴鼻端至工作台面

          ※

mm

200-1000(大约值)


双柱间距离


mm

1580(大约值)

工作台





工作台尺寸(长)


mm

2200


(宽)

mm

1480


最大载重


kg

6000

主轴





主轴转速

rpm

无级变速6000rpm


主轴功率


kW

18.5kw


主轴内孔锥度



BT50(套筒直径190mm)

进给





G00 快速进给(X轴)


mm/min

15000


G00 快速进给(Y轴)


mm/min

15000


G00 快速进给(Z轴)


mm/min

12000


G01 切削进给


mm/min

1 – 7500

其他





机器重量


kg (约)

20500


The advantage of five axis machining center is that the general three axis CNC machine can process complete at the same time. For example, blades of aircraft engines steam turbines, propellers of ships, other complex molds with special surfaces. Because the tool angle of the five axis machining center can be adjusted at any time during the machining process, other tools can be avoided the machining can be completed at one time. Five axis machining center can also achieve the machining accuracy quality of free-form surface under the premise of high efficiency. For example, when ball milling tools are used to process complex surfaces, the cutting tool angle cannot be adjusted freely due to the low cutting efficiency, so it is difficult to guarantee the smooth surface quality of large high-speed engraving milling machine. However, the use of five axis machining center machine tools, because the tool angle can be freely adjusted, can avoid the occurrence of small mold engraving milling machine, so as to obtain high cutting efficiency high quality machining surface quality.

数控龙门铣 YMC-2215

YMC-2215
