CNC engraving milling machine ymc-1080

2020-10-23 11:44:03
second

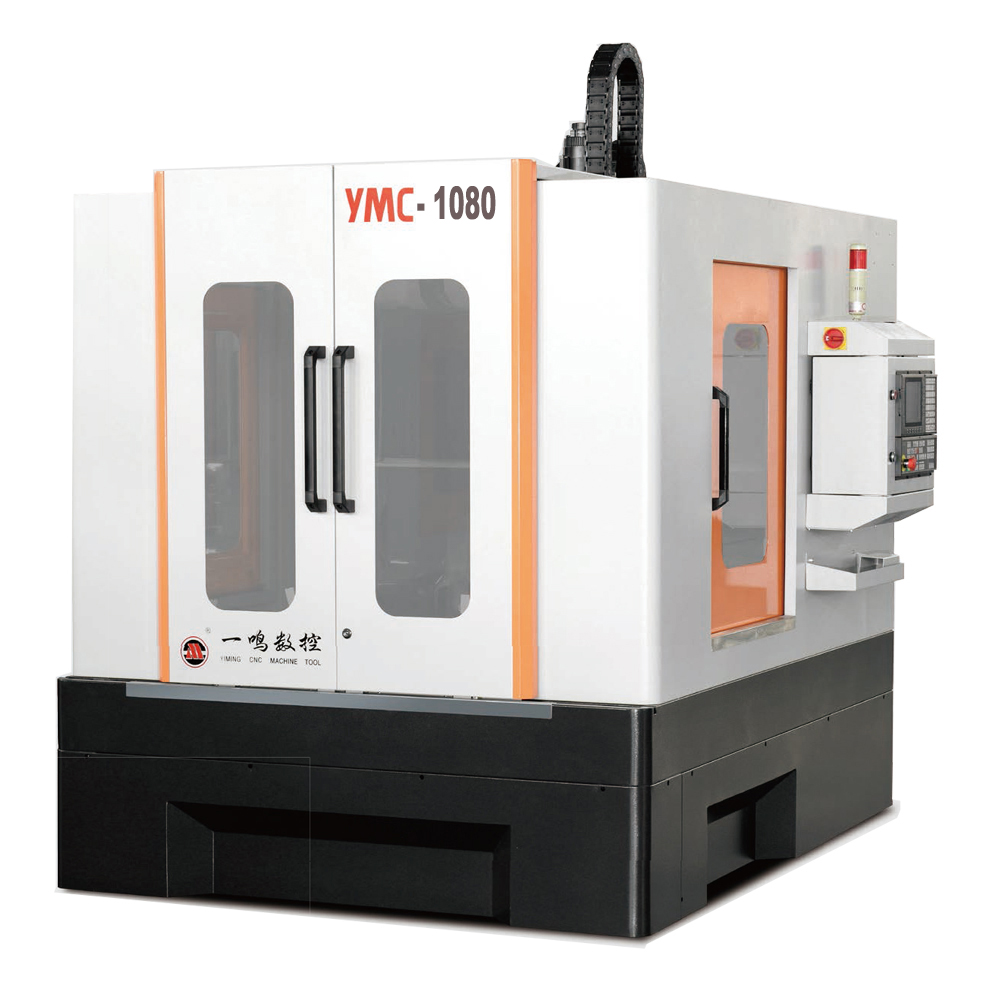

CNC engraving  milling machine ymc-1080
Detailed introduction:

机器规格:YMC-1080B系列

          项次

项  目

技术参数

1

X/Y/Z行程

850/1000/350mm

2

工作台最 大负重

1000Kg

3

龙门宽度

950mm(大约值)

4

          龙门高度(主轴鼻端-工作台面)

460mm(大约值)

5

最 大走刀速度(G01)

6000mm/Min

6

最 大移动速度(G00)

          XY:15000mm/Min Z:7500mm/min

7

主轴电机功率

8kw

8

主轴最 高转速

15000RPM

9

主轴锥孔规格

ER40(选配BT30/BT40)

10

整机毛量

5.1T


Performance requirements of small engraving machine

The velocity fluctuation is small in the whole speed range. The high low speed torque of Yiming four axis engraving milling machine can ensure low gear laser cutting.

The acceleration deceleration time should be as short as possible.

Our cutting speed can be below 500r / min. Our V11 inverter can make multi segment frequency conversion curve, which can well control different torque increase under high low speed, so it can meet the requirements of high-speed engraving machine. The actual main parameters of regulation (relative to rated frequency 400Hz, rated voltage 380V, rated speed ratio 24000) are as follows:

V / F control

The higher frequency of command safe channel of terminal equipment: 400.00hz upper bound frequency: 400.00hz acceleration time: 2030s deceleration time: 2030s motor parameters are input according to the high speed motor nameplate.


数控雕铣机 YMC-1080

数控雕铣机 YMC-1080

YMC-1080
