YMC-1160系列
项次 | 项 目 | 技术参数 |
1 | X/Y/Z行程Travel | 1100mm/600mm/600mm |
2 | 主轴中心距立柱导轨最 大距离 | 600mm |
3 | 主轴端面至工作台面距离 | 120-720mm |
4 | 最 大走刀速度（G01） | 8000mm/Min |
5 | 最 大移动速度（G00） | 15000mm/Min |
6 | 主轴最 高转速 | 18000RPM |
7 | 主轴规格 | BT40 |
8 | 工作台最 大承重 | 600Kg |
9 | 整机毛量 | 7.0t |
10 | 工作台T型槽（数目-尺寸*间距） | 5-18*120mm 600X1200mm |
Processing scale
The workbench area can react well. The minimum working area of domestic Yiming gantry milling machining center (computer gong) is 8305000 (850), the working area of small engraving milling machine is 700620 (750), the minimum working area is 450450 (400), generally more than 450450, generally 45270 (250).
Applicable objects
The machining center is used to complete a large number of milling, large mold, hardness comparison material workpiece processing equipment, also suitable for the rough processing of ordinary mold; engraving machine is used to complete small milling volume, small mold finishing, suitable for copper, graphite other processing. Generally speaking, machining center engraving milling machine can only make products, but also make molds. Engraving machines can only do products.

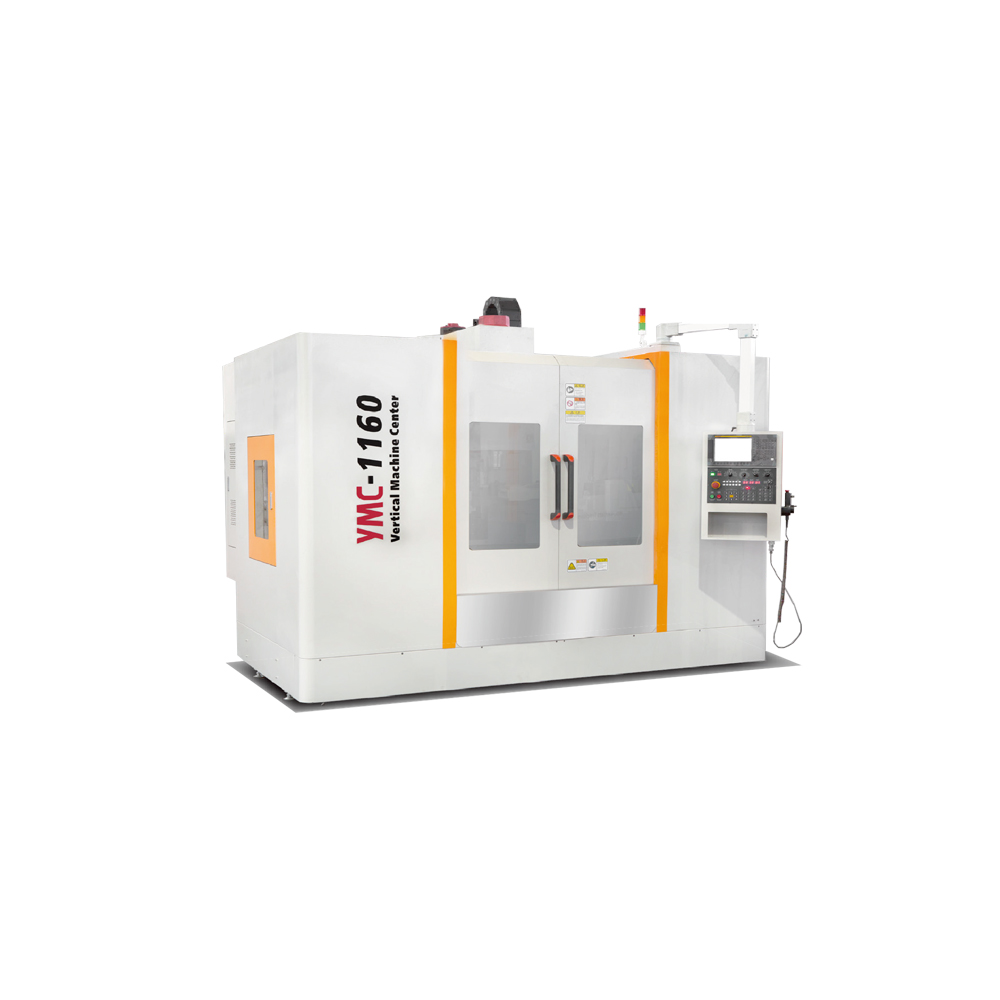

YMC-1160
