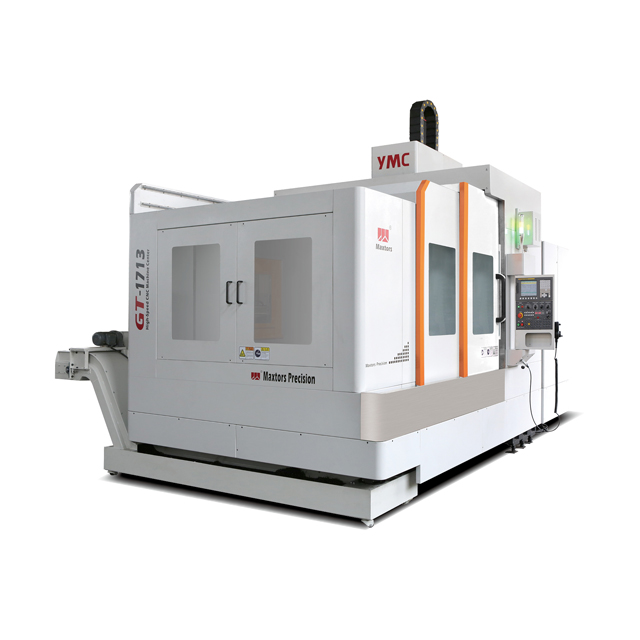

GT series medium high speed milling gt-1713

2020-10-23 13:09:49
second
GT series medium high speed milling gt-1713
Detailed introduction:


GT-1713主要规格及技术参数


          规格说明/DESCRIPITION

          单位/UNIT

GT-1713

          ●

行程/TRAVEL




XYZ轴导轨型式


高刚性滚柱线轨


X轴行程(工作台)

mm

1700


Y轴行程(横梁)

mm

1300


Z轴行程(上下)

mm

700


主轴鼻端至工作台面

mm

          250-950(大约值)


双柱间距离

mm

1350(大约值)

工作台/TABLE




工作台尺寸(长)

mm

1700


(宽)

mm

1200


最 大载重

kg

3000

主轴/SPINDLE




主轴转速/RPM

rpm

无级变速15000rpm


主轴内孔锥度/TYPE


HSK-A63

进给/FEED RATE




G00 快速进给(X轴)

mm/min

20000


G00 快速进给(Y轴)

mm/min

20000


G00 快速进给(Z轴)

mm/min

10000


G01 切削进给

mm/min

1 – 8000

其他




机器重量

kg (约)

16000





performance requirement

1. The engraving milling machine adopts continuously variable speed electric grinding head, the spindle speed is less than four speeds, the spindle temperature shall exceed 65 ℃, the temperature rise shall exceed 40 ℃.

2. The P part on the linear motion coordinate should be smooth, flexible reliable, without vibration crawling.

3. The supply system should be flexible reliable. Large gantry milling machine with CNC, linear interpolation, arc interpolation other functions, clear reliable.

5. All functions of CNC engraving milling machine shall be operated continuously under simulated working conditions, the continuous operation time shall be less than 72 hours.

6. The mechanical geometric accuracy of CNC engraving milling machine is shown in Table 1 (standard appendix).

7. According to GB / t174212-2000, the positioning accuracy, vertical positioning accuracy reverse error detection of log controlled engraving milling machine are tested accepted.

8. Machining accuracy of CNC engraving milling machine.

GT 系列中高速铣 GT-1713

GT 系列中高速铣 GT-1713

GT-1713
