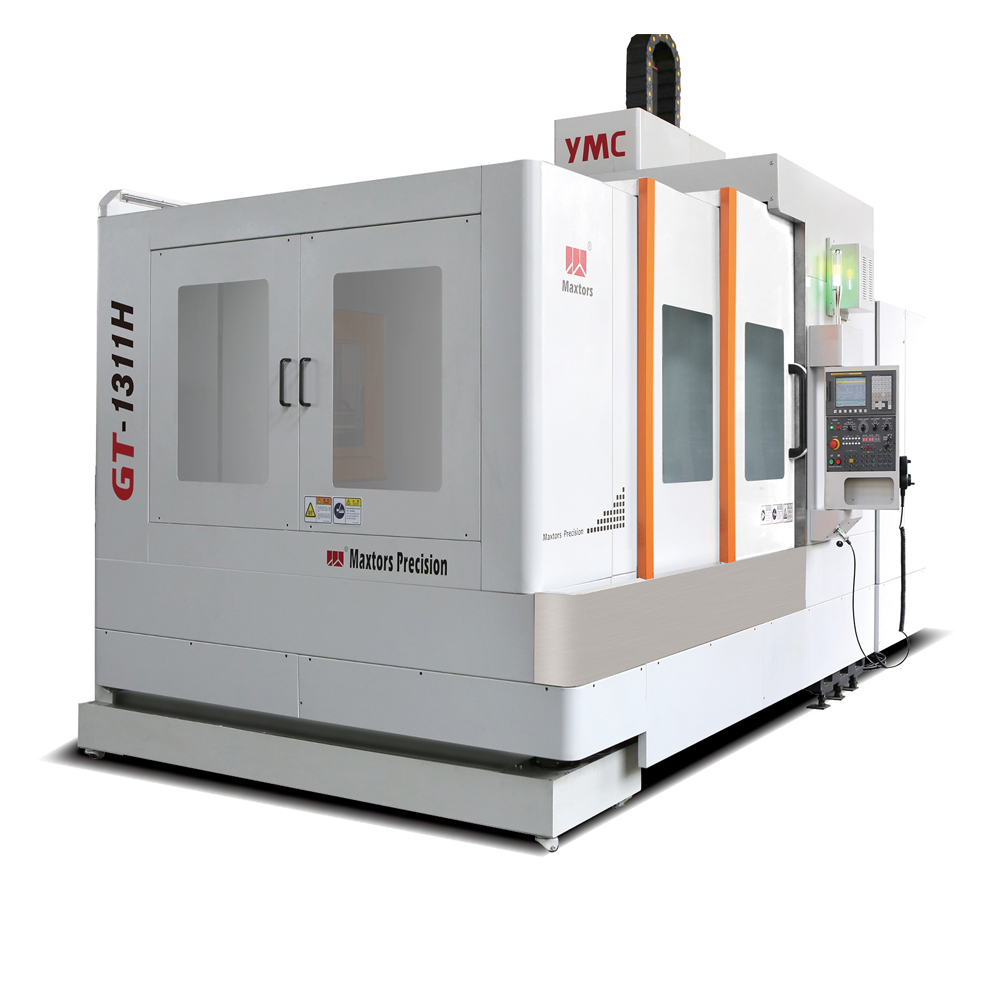

GT series medium high speed milling gt-1311h

Detailed introduction:

GT-1311H主要规格及技术参数

	规格说明	单位	GT-1311H
●	行程
	Ｘ轴行程（横梁）	mm	1100
	Ｙ轴行程（工作台）	mm	1300
	Ｚ轴行程（上下）	mm	600
	主轴鼻端至工作台面	mm	180-780（大约值）
	双柱间距离	Mm	1150(大约值)
●	工作台
	工作台尺寸（长）		1300
	（宽）	mm	1000
	最大载重	kg	2000
●	主轴
	主轴转速	rpm	15000
	主轴内孔锥度		HSK-A63
●	进给
	G00 快速进给（Ｘ轴）	mm/min	15000
	G00 快速进给（Ｙ轴）	mm/min	15000
	G00 快速进给（Ｚ轴）	mm/min	10000
	G01 切削进给	mm/min	1 – 8000
●	其他
	机器重量	kg (约)	10000

Features of machine tool:

Yiming CNC engraving milling machine is suitable for high-speed machining of high rigid bed

The internal stress is eliminated by annealing treatment, vibration treatment natural effect treatment.

C3 ball screw ensures high precision durability

The deformation is reduced by Pretensioning each axis

The whole large mould engraving milling machine is raised to dust-proof level to prevent graphite dust corroding polluting machine parts, electronic parts environment

Vacuum graphite machine:

Dry cutting

Indoor dust collection technology

External dust collection treatment

Whole machine seal protection

Three axis double extended shield

Water curtain graphite machine:

Wet cutting

Processing of oil curtain for inner spindle

The whole machine is sealed protected.

Three axis double extended shield

Upgrading of special graphite filtration system
